Cup holder installed on Kangaroo golfstream fold-up caddy

*Koozie not included

How to install Cup Holder

Hardware included:
silver lock nut
round head bolt for allen wrench
large silver metal washer (2)
small black nylon washer

Tools needed:
3/16" allen wrench
1/2" wrench

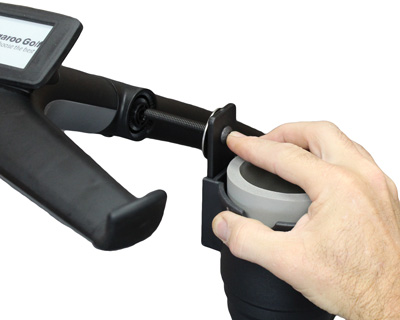

Cup holder, first washer, and bolt sliding into Golfstream accessory station.

Place bolt through cup holder. Place small nylon washer then one large metal washer on bolt and slide through the hole on the Golfstream accessory receptacle.

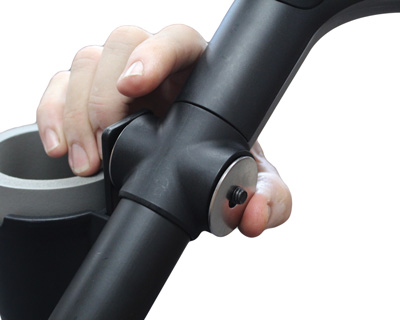

Second washer being placed on Golfstream accessory station for cup holder installation.

Place second large metal washer on the other side of the bolt. Place silver lock nut plastic side out and use fingers to tighten.
Note: If plastic side of nut isn’t facing out it will not lock correctly and your cup holder may fall off during use.

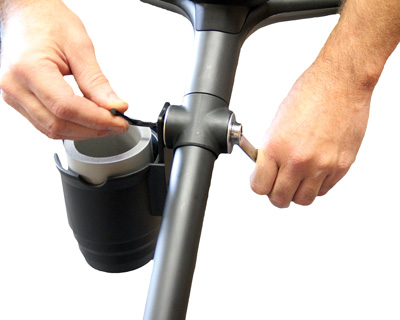

Cup holder nut being tightened into place.

Use 1/2” wrench on side with washer to keep bolt from rotating, and allen wrench on the cup holder side to tighten nut until it is flush with edge of the bolt.

Your cup holder is now installed.

Cup holder needs to be aligned with center tube when collapsing Golfstream.

Important note: Make sure you adjust your swivel cup holder to align with the center tube when you collapse your Golfstream. If you don’t, the impact may damage your cup holder.
